XH2.54mm Female Terminal Cable
Price range: KSh 15.00 through KSh 35.00

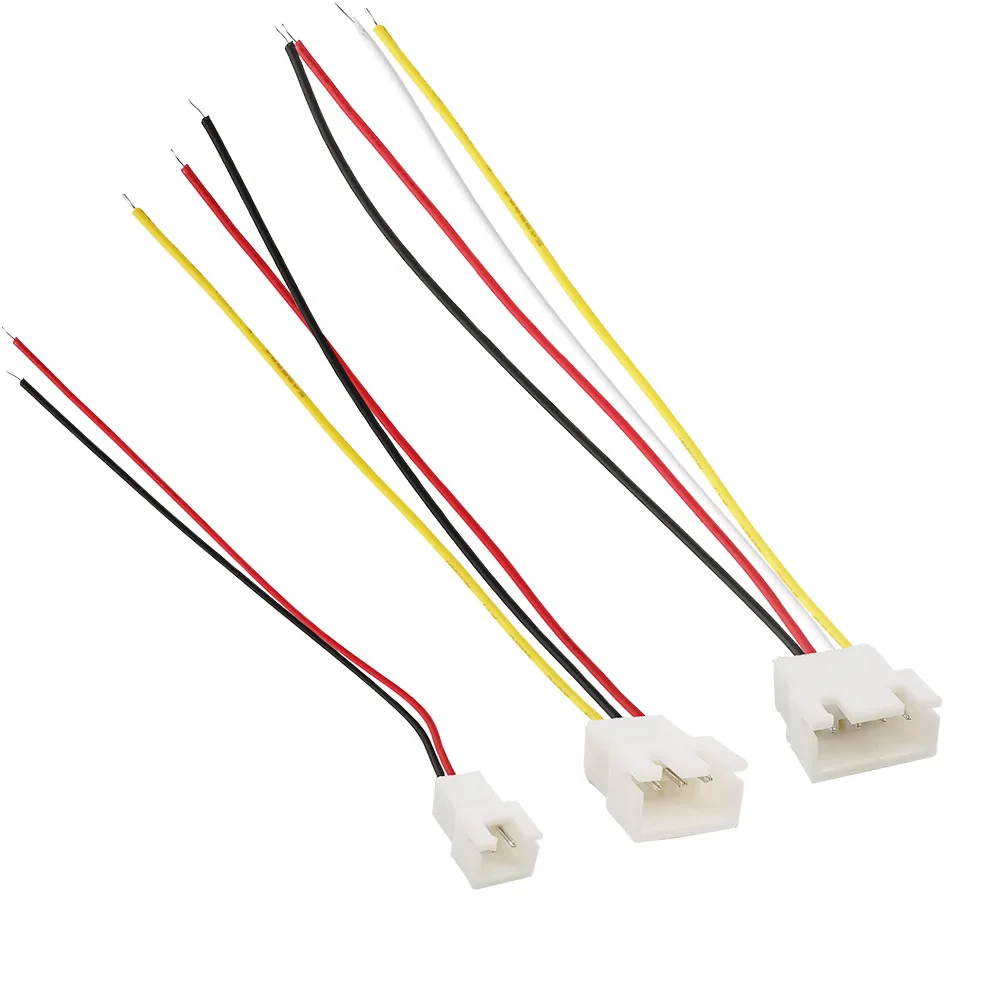

XH2.54mm Female Terminal Cable (2P/3P/4P)
Pre-crimped JST XH series female connector cables with pin spacings of 2.54mm. These ready-to-use cables are designed for power and signal connection, commonly used to link drivers, sensors, and controllers in 3D printers, drones, LED lighting, and small electronic devices. The female sockets connect directly to standard male XH headers or pins.
Key Features & Benefits
-
Plug-and-Play Connection: Pre-assembled with crimped female sockets on stranded wire, providing instant, reliable connections without soldering.
-
Secure Locking Mechanism: Features the JST-XH positive latch that clicks securely onto male headers, preventing accidental disconnection in high-vibration environments.
-
Common Configuration Options: Available in 2-pin (power), 3-pin (signal + power), and 4-pin configurations to suit various sensors, fans, servos, and modules.
-
Industry Standard Pitch: The universal 2.54mm (0.1″) spacing matches standard pin headers, breakout boards, and development boards like Arduino.
-
Polarized & Keyed: Connector housing is polarized to prevent incorrect mating, ensuring safe and proper connections every time.
Technical Specifications
-
Connector Series: JST-XH, Female (Socket Housing)
-
Pitch: 2.54mm
-
Pin Count: 2-Position, 3-Position, or 4-Position
-
Wire: 22 AWG stranded copper, PVC insulation
-
Cable Length: Commonly 100mm, 150mm, or 200mm (varies by supplier)
-
Rated Current: 3A per contact
-
Rated Voltage: 250V AC/DC
-
Contact Material: Brass, tin-plated
-
Housing Material: Nylon (PA66), UL94V-0 rated
| PINS | 2PIN, 3PIN, 4PIN, 5PIN, 6PIN |
|---|
