1.5mm² Flexible 3-Core Cable Per Meter
KSh 80.00
Out of stock

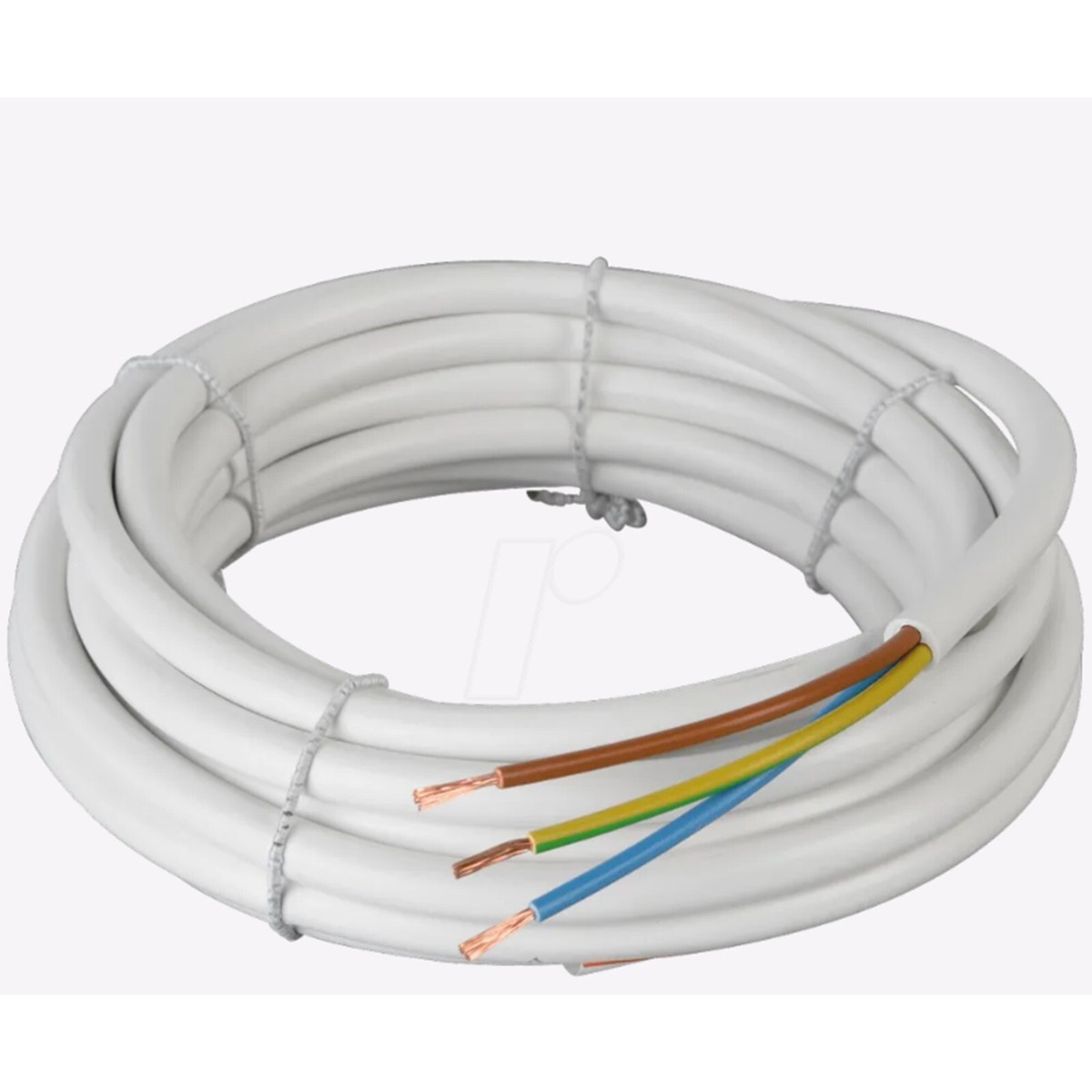

1.5mm² Flexible 3-Core Cable
A multi-strand flexible electrical cable consisting of three insulated conductors, each with a cross-sectional area of 1.5 square millimeters, housed within an outer PVC sheath. Designed for internal wiring of appliances, extensions, and portable equipment where repeated movement or bending is required.
Key Features & Benefits
-
High Flexibility: Made with fine-stranded copper wires that allow repeated bending and flexing without breakage, ideal for movable appliances and tools.
-
Clear Color Coding: Conductors are color-coded for easy identification: Brown (Live), Blue (Neutral), and Green/Yellow (Earth), ensuring safe and correct connections.
-
Durable & Protective: The tough PVC outer sheath provides abrasion resistance and basic protection against oils, moisture, and physical damage.
-
Rated for General Power Use: Suitable for mains voltage applications up to 300/500V, commonly used in extension leads, workshop equipment, and industrial machinery.
-
Easy Termination: The fine strands make it easy to fit into screw terminals, clamp connectors, or plugs without the need for special preparation.
Technical Specifications
-
Conductor Size: 3 x 1.5 mm² (Approx. 16/0.2mm strands per core)
-
Voltage Rating: 300/500V
-
Current Capacity: ~16A (dependent on installation conditions)
-
Insulation: PVC (cores and sheath)
-
Core Colors: Brown (L), Blue (N), Green/Yellow (E)
-
Conductor: Plain annealed copper, finely stranded
-
Outer Diameter: ~8.5mm (approximate)
-
Standards: Harmonized (H05VV-F 3G1.5) or national equivalent
-
Temperature Range: -5°C to +70°C (flexing)
