WS2812B 5V 0.3W RGB LED Light Strip 5M
Description
This is a 5-meter WS2812B RGB LED light strip operating at 5V. It features 5050 RGB LEDs with 300 individually addressable LEDs (60 per meter), mounted on a black PCB. The strip has an IP67 rating, providing high-level protection against dust and water immersion.
Each LED displays full RGB color with 256 levels of gray for precision lighting effects. The design offers a 180° emitting angle for wide dispersion. It is engineered to operate reliably in a variety of environments, from freezing conditions to high-heat settings.
Specifications:
- Working Voltage: DC 5V
- Maximum Power Consumption: 1.5W per meter (approx. 75W total)
- Colors: Full Color RGB
- Gray Level: 256
- FPCB Color: Black
- Emitting Angle: 180°
- Operating Temperature: -25℃ to +60℃
- Storage Temperature: -40℃ to +80℃
- Total Pixels: 300 segments (60 lights/meter)
- Strip Thickness (Casing): 4mm
- FPCB Width (Casing): 10mm

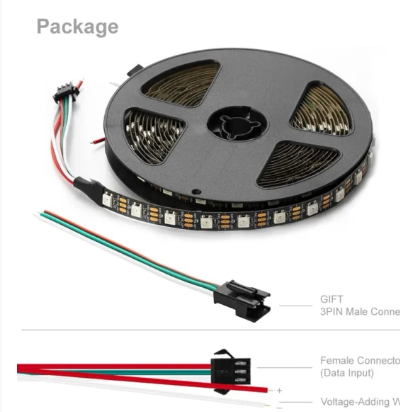

- Output Mode: SM3pin terminal head and 2 power cables
