Name: GSM SIM7600G-H 4G Module | bluepack nova
SKU: 5165
Price: 11000.00 KES
Availability: InStock

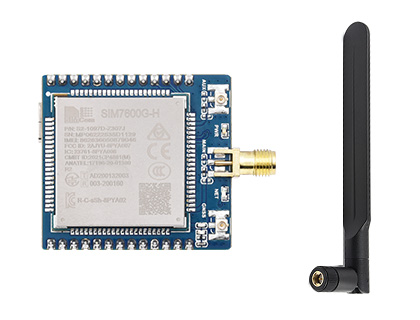

The SIM7600G-H is a high-performance 4G LTE communication module designed for reliable cellular connectivity in embedded and industrial systems. It supports multi-mode operation across 4G LTE, 3G, and 2G networks, providing high-speed data transmission, voice, SMS, and GNSS functionality. The module integrates powerful processing, multiple interfaces, and robust RF performance, making it suitable for demanding IoT and M2M environments.

Key Features

Multi-mode cellular support: 4G LTE, 3G WCDMA, and 2G GSM
High-speed LTE data connectivity
Supports voice calls, SMS, and packet data
Integrated GNSS positioning (GPS, GLONASS, BeiDou, Galileo)
USB device interface with CDC, ECM, and NDIS support
Multiple UARTs for control and data communication
Supports standard AT command set
SIM card interface with 1.8V / 3.0V compatibility
Onboard RF connectors for LTE and GNSS antennas

Technical Specifications

LTE Category: LTE Cat-4
Peak data rate: up to 150 Mbps downlink, 50 Mbps uplink
Supported LTE bands: region-dependent (common bands include B1, B3, B7, B8, B20, B28, B38, B40, B41)
Operating voltage: typically 5V (high peak current during transmission)
Peak current consumption: up to 2A during LTE transmission bursts
Operating temperature: –30°C to +75°C
Form factor: LGA / module-based design suitable for carrier boards

Interfaces and Integration

USB 2.0 high-speed interface
UART, GPIO, and control pins
Supports TCP/IP, HTTP/HTTPS, FTP, MQTT, and SSL/TLS stacks
Compatible with Linux, Windows, Raspberry Pi, Arduino (via USB or UART), and industrial controllers
