Name: 64 Bit WS2812 5050 RGB LED Lamp Panel Module | bluepack nova
SKU: 3465
Price: 850.00 KES
Availability: InStock

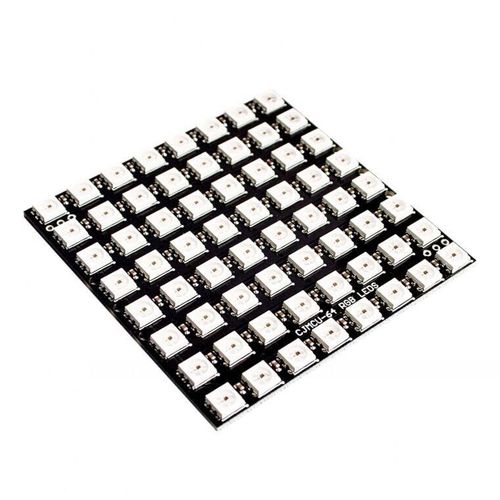

The 64-Bit WS2812 5050 RGB LED Panel Module is a compact, addressable LED matrix composed of 64 high-brightness WS2812 smart LEDs arranged in an 8×8 grid. Each LED integrates a control IC, allowing independent control of color and brightness using a single data line. Ideal for dynamic light displays, animations, text effects, and DIY lighting projects.

Key Features:

✔ LED Type: WS2812B 5050 RGB (integrated driver IC)
✔ Matrix Size: 8×8 grid – 64 individually addressable LEDs
✔ Operating Voltage: 5V DC
✔ Control Interface: Single-wire digital input (compatible with Arduino, ESP32, etc.)
✔ Color Control: 24-bit RGB (16.7 million colors) per LED
✔ Brightness Control: PWM dimming (8-bit per channel)
✔ Daisy-Chaining: Chain multiple panels for larger displays
✔ Dimensions: Approx. 65mm × 65mm (varies slightly by manufacturer)

Applications:

🔹 LED displays and pixel art
🔹 Scrolling text and animations
🔹 Wearable or decorative lighting
🔹 DIY smart lamps and lighting effects
🔹 IoT and interactive visual feedback systems
