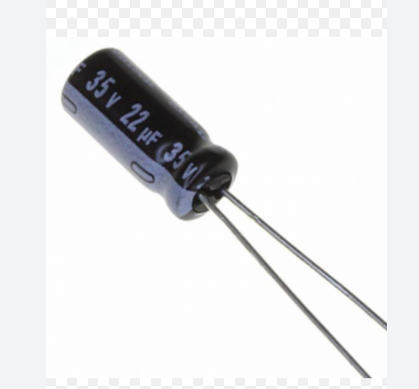

35V 22uF Capacitor
KSh 10.00
In stock
Description
A 35V 22µF electrolytic capacitor is a polarized component designed for balanced energy storage in space-sensitive applications. It provides effective voltage smoothing and signal decoupling for low-to-medium power circuits. This value is widely favored for power management and analog signal processing where reliability and a small footprint are essential.
Specifications
- Capacitance: 22 microfarads (µF) – Optimized for precise filtering and timing tasks.
- Voltage Rating: 35 Volts (V) – High safety margin for 5V, 9V, 12V, and 24V DC rails.
- Capacitor Type: Aluminum electrolytic.
- Tolerance: Typically ±20%.
- Polarity: Polarized (must ensure correct orientation of positive and negative leads).
- Operating Temperature: Commonly −40°C to +85°C or +105°C.
- Package: Radial lead (through-hole); compact cylindrical size.
Applications
- Intermediate Filtering: Smooths DC output in small power adapters and modules.
- Voltage Buffering: Provides local energy reserves for integrated circuits.
- Audio Coupling: Blocks DC bias while allowing AC signals to pass between stages.
- LED Drivers: Helps stabilize current flow to minimize flickering.
- General Repair: Common replacement part for household electronics and toys.
Key Features
- Space-Efficient: Fits easily into dense or portable electronic designs.
- Balanced Storage: Offers a middle-ground capacitance in a miniature frame.
- Economical: High-performance storage at a very low cost per unit.
- Wide Compatibility: Works across various low-to-medium frequency designs.
Note:
This component is polarized. Incorrect installation can cause internal heating, leakage, or failure. For superior high-frequency noise suppression, it is best practice to place a 0.1µF ceramic capacitor in parallel.
