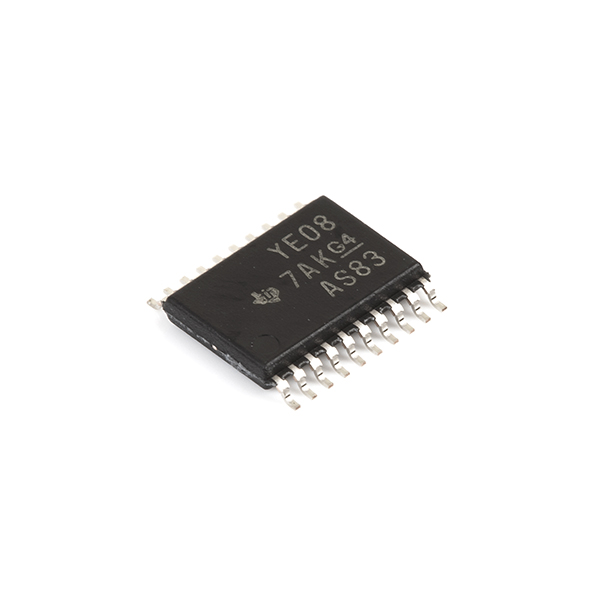

TXB0108PWR 8-bit Bidirectional Level Shifter

KSh 350.00

Only 2 left in stock

Description
Reviews (0)

The TXB0108PWR is an 8-bit bidirectional voltage-level translator from Texas Instruments, designed to enable communication between devices operating at different logic voltage levels. It features automatic direction sensing, eliminating the need for a direction control pin, making it ideal for mixed-voltage digital systems.

Key Features:

✔ 8 Bidirectional Channels
✔ Automatic Direction Sensing (No DIR Pin Required)
✔ Voltage Range (VCCA): 1.2V – 3.6V
✔ Voltage Range (VCCB): 1.65V – 5.5V
✔ Supports Push-Pull Logic Signals
✔ Data Rates: Up to 100Mbps (depending on operating voltage)
✔ Package: 20-pin TSSOP (PWR)
✔ Operating Temperature: -40°C to +85°C

Applications:

🔹 Interfacing 1.8V, 3.3V, and 5V logic devices
🔹 Microcontroller and FPGA systems
🔹 SPI, UART, and GPIO level translation
🔹 Embedded systems and development boards
🔹 Mixed-voltage digital circuits

The TXB0108PWR provides a simple and reliable solution for bidirectional logic level translation between devices operating at different voltage levels, making it ideal for modern embedded and digital electronics designs.
