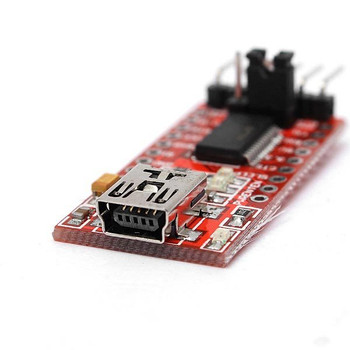

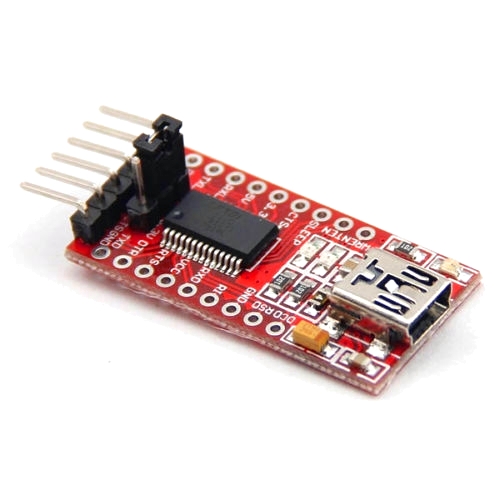

FTDI 232RL USB to TTL Serial Adapter Module

FT232RL USB to TTL Serial Adapter Module.

Description:

• Purpose: This module is used to convert serial data between USB 2.0 and TTL (Transistor-Transistor Logic) levels. It allows you to connect devices that use USB to devices that use TTL, and vice versa.
• FT232RL Chip: The module is based on the FT232RL integrated circuit, which provides the core functionality for converting between USB and TTL.
• USB 2.0 Interface: The module has a USB 2.0 connector for connecting to a computer or other USB-enabled device.
• TTL Interface: The module typically has 3.3V or 5V TTL-level output pins (TXD, RXD, DTR, RTS, GND) for connecting to serial devices.

Specifications:

• USB Interface: USB 2.0 compliant
• TTL Interface:
  • Voltage Levels: 3.3V or 5V (configurable)
  • Data Rate: Supports various baud rates, typically up to 3 Mbps.
  • Flow Control: Supports hardware flow control (RTS/CTS) and software flow control (XON/XOFF).
• Power Supply: Typically powered by the USB bus, but may require an external power supply for certain applications.
• Driver Support: Most operating systems provide built-in drivers for the FT232RL, making it easy to use the module.
• Dimensions: The size of the module may vary depending on the specific manufacturer and design.

Applications:

• Microcontroller Communication: Connecting microcontrollers or other embedded systems to computers for programming, debugging, or data transfer.
• Industrial Automation: Connecting industrial devices that use TTL-level serial communication to computers.
• Robotics: Controlling robots or other robotic devices using serial communication.
• Scientific Research: Connecting scientific instruments or sensors to computers for data acquisition.

Additional Information:

• Compatibility: Ensure compatibility between the module and the specific devices you intend to connect.
• Breakout Boards: Many FT232RL modules are available on breakout boards, which provide convenient access to the pins and may include additional features.
• Programming: Some modules may require programming or configuration using specific software or commands.

Please note that the specific specifications and features of an FT232RL USB to TTL Serial Adapter Module may vary slightly depending on the manufacturer and model. If you have more information about the specific product you’re interested in, I can provide a more detailed description.
