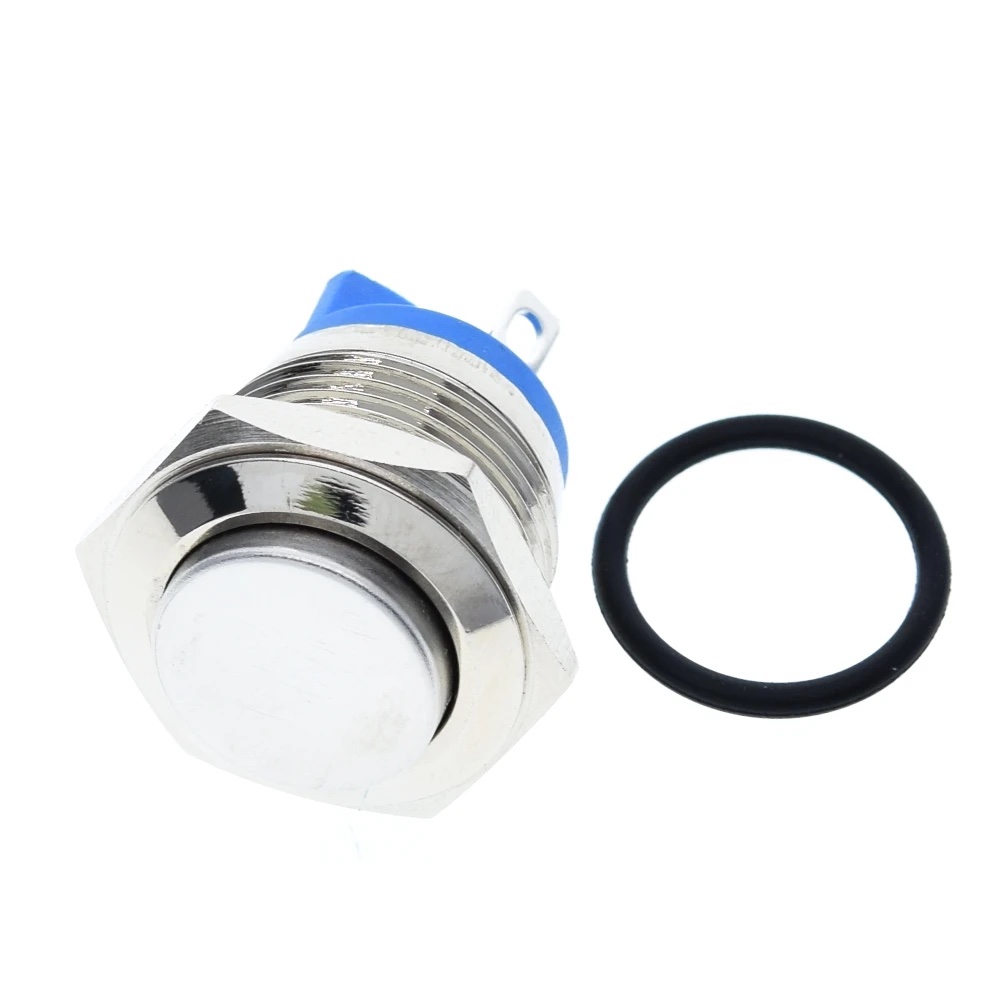

Ball head 16mm Self-resenting Switch button
KSh 200.00
In stock
The “self-resetting” nature means the circuit is only active while the button is physically held down—once released, it springs back to its original state.
Technical Specifications
• Mounting Hole Diameter: 16mm
• Operation Type: Momentary / Self-Resetting (Springs back after press)
• Contact Configuration: 1NO (Normally Open)
• Front Shape: Flat Round
• Terminal Type: Pin Terminal (Solderable)
• Switch Rating: 3A / 250V AC
• Contact Resistance: le 50mOmega
• Insulation Resistance: ge 1000MOmega
• Dielectric Strength: 2000V AC
• Operating Temperature: -20°C to +55°C
• Mechanical Life: > 500,000 cycles
• Electrical Life: > 50,000 cycles
• Torque: 5 ~ 14Nm
• Protection Level: IP65 / IK08 (Waterproof and Vandal-resistant)
• Material: Stainless Steel / Nickel-plated Brass / Cr-plated Brass
Key Product Highlights
• Weatherproof Reliability: Includes a rubber O-ring to create a water-tight seal, making it suitable for marine or outdoor use.
• Vandal Resistant: The solid metal housing is designed to withstand physical impact and heavy-duty wear.
• Compact Footprint: The 16mm thread allows for installation in tight control panels where space is a premium.
• Professional Finish: High-polish metal surface resists corrosion and maintains a clean look over years of use.
