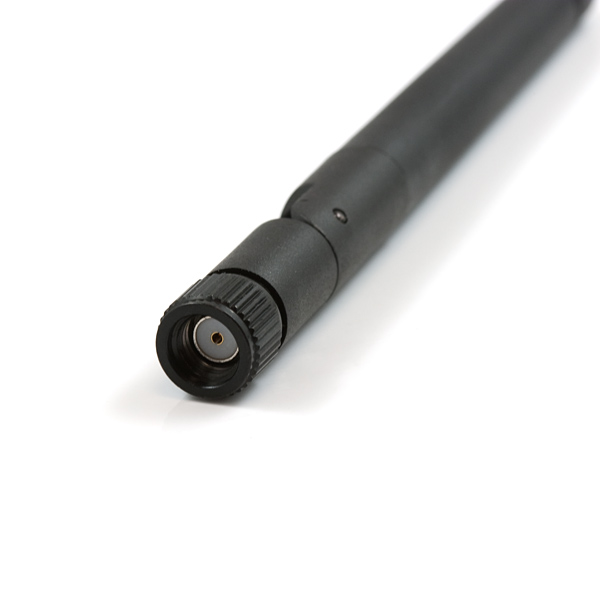

900/1800MHz Dual Frequency Duck FEMALE Antenna

KSh 2,000.00

In stock

A flexible, omnidirectional dual-band antenna optimized for clear signal transmission and reception in the 900 MHz and 1800 MHz GSM/GPRS/3G bands. Featuring a standard female SMA connector, this antenna is designed for easy and secure attachment to compatible routers, modems, gateways, and IoT devices, significantly improving connectivity and range for mobile data and communication networks.

Key Features & Benefits

  • Dual-Band Optimization: Specifically tuned for the 880-960 MHz and 1710-1880 MHz frequency ranges, ensuring excellent performance for GSM, 2G, 3G, and GPRS applications.

  • Enhanced Signal & Range: Provides superior gain over built-in PCB antennas, extending wireless coverage and boosting signal stability for reliable data transmission.

  • Flexible & Durable Design: The rubber-duck style housing offers flexibility to prevent damage and allows for optimal positioning. Rated IPX4 or higher for basic weather and dust resistance.

  • Universal Female SMA Connector: Enables a direct, screw-on connection to devices with a male SMA antenna port, ensuring a stable and secure link without adapters.

  • Easy Plug-and-Play Installation: Instantly upgrade your device’s connectivity. Simply screw the antenna onto the external port for a quick and effective signal boost.

Technical Specifications

  • Frequency Bands: 880-960 MHz & 1710-1880 MHz

  • Connector Type: Female SMA (Reverse Polarity SMA-F common)

  • Impedance: 50 Ω

  • Gain: 2 dBi (Typical, each band)

  • VSWR: < 2.0

  • Polarization: Vertical

  • Cable Length: 1m RG174 (Standard)

  • Connector Finish: Gold-plated brass

  • Operating Temperature: -30°C to +70°C

  • Radiation Pattern: Omnidirectional
