Name: 6N137 optocoupler | bluepack nova
SKU: 8855
Price: 150.00 KES
Availability: OutOfStock

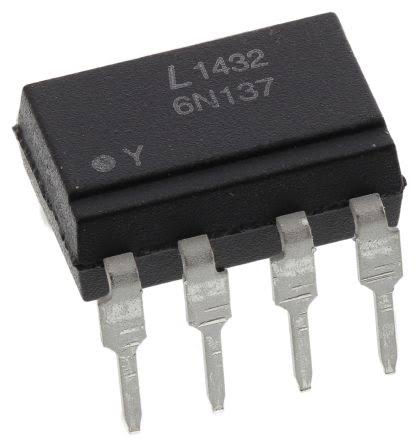

The 6N137 is a single-channel, high-speed optocoupler designed to electrically isolate digital signals between circuits while transferring data optically. It combines an LED with an integrated high-speed logic detector and provides a strobable open-collector output. It supports data rates up to 10MBd, making it suitable for high-speed digital signal isolation.

Key Features:

Type: Single-channel high-speed logic gate optocoupler
Data Rate: Up to 10MBd
Logic Compatibility: TTL/LSTTL and LVTTL/LVCMOS variants
Output: Open-collector/open-drain logic output with enable/strobe input
Isolation: High electrical isolation between input and output
Package: Commonly available in 8-pin DIP and SOIC-8 versions
High Common-Mode Rejection: Up to 15kV/µs for specified versions

Applications:

Digital signal isolation
Microcontroller interfaces
UART and communication interfaces
Industrial control systems
Switching power supplies
Ground-loop elimination
Isolated line receivers

The 6N137 is particularly useful when you need fast digital signal transmission while maintaining electrical isolation between two parts of a circuit.
