MP1584EN 3A DC-DC Adjustable Step Down Module

KSh 150.00

In stock

Description
Reviews (0)

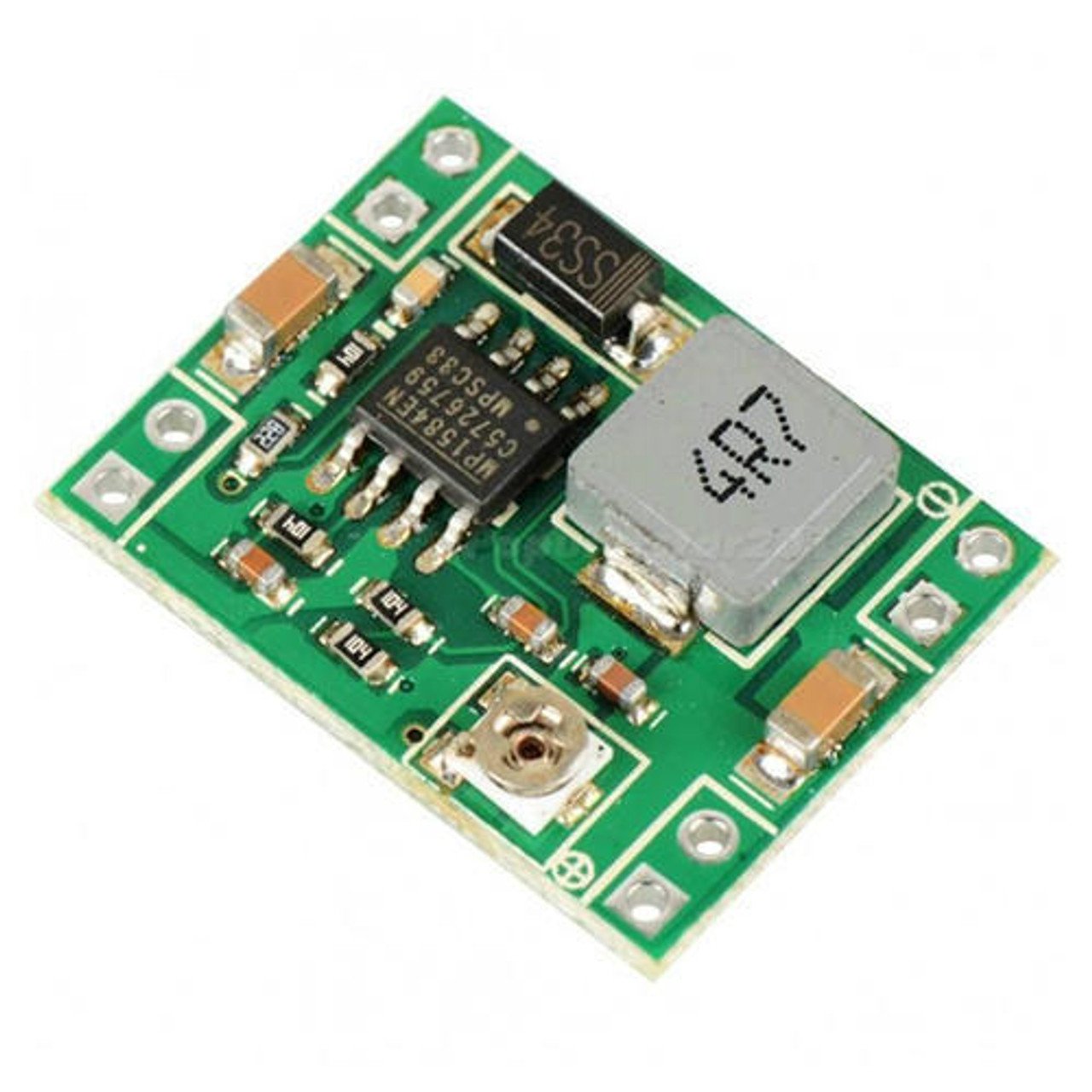

MP1584EN 3A DC-DC adjustable step-down module is a compact buck converter designed to efficiently reduce a higher DC voltage to a lower, user-defined DC voltage. It’s built around the MP1584EN chip, a high-frequency switching regulator. This module is often used in a variety of electronic projects, including those with Arduino, Raspberry Pi, and other microcontrollers, as well as in DIY power supplies and RC applications.
Key Features and Specifications
* Type: DC-DC Step-Down (Buck) Converter.
* Chip: MP1584EN.
* Input Voltage: 4.5V to 28V.
* Output Voltage: Adjustable from 0.8V to 20V via an on-board potentiometer.
* Output Current: It can handle a maximum output current of 3A, but for continuous use, the typical current is closer to 1.8A. Note that the maximum current it can output can decrease at higher output voltages.
* Efficiency: The conversion efficiency is high, often reaching up to 96%.
* Switching Frequency: Operates at a high switching frequency, typically around 1MHz, which helps to reduce the size of the components and minimize ripple.
* Size: The module is very small, typically measuring around 22mm x 17mm x 4mm, making it ideal for space-constrained applications.
* Protection: Includes features like soft-start, thermal shutdown, and under-voltage lockout to protect the module and your devices from damage.
